Working at height is a very dangerous job. This should never be done without proper safety supervision. Work at height job can be done successfully by keeping safety in mind. Therefore, it is mandatory for us to follow all the instructions properly while working at height.

Many accidents at construction or project sites are caused by working at height. Therefore, before starting the work, proper “JSA “(Job safety analysis) of the job should be prepared with the help of the relevant” HIRA “(Hazard Identification ans Risk Assessment) document after inspection of the site. And after taking a valid job permit, the work should be done under supervision only after taking the “Toolbox Talk meeting “

The work being done at height must be checked with the help of its safety checklist so that if any error remains, it can also be rectified in time and safety can be determined completely.

Work At Height Checklist (Inspection Checklist)

/17

Work At Height Checklist

Work At Height (WAH) Safety Checklist

Fill Auditor/ WAH Job Title :-

1 / 17

Category: WAH Checklist

1. Are base plates are installed at the bottom of the scaffold?

a) Yes

b) No

2 / 17

Category: WAH Checklist

2. Are vertical and horizontal tubes installed at 90 angles (plum and square) ?

a) Yes

b) No

3 / 17

Category: WAH Checklist

3. Is there sufficient use of cross bracing to ensure scaffold structural integrity and strength ?

a) Yes

b) No

4 / 17

Category: WAH Checklist

4. Are tubes joined with metal coupling not ropes or wires ?

a) Yes

b) No

5 / 17

Category: WAH Checklist

5. Is there an access ladder or correct length, securely fastened and extended one meter above the landing or platform ?

a) Yes

b) No

6 / 17

Category: WAH Checklist

6. Are scaffolds Tagged (Green) for fit to use after inspection with competent person ?

a) Yes

b) No

7 / 17

Category: WAH Checklist

7. Are both toe board, top and mid rails available entire surrounding platform ?

a) Yes

b) No

8 / 17

Category: WAH Checklist

8. Are worker using the scaffold properly? (Body completely inside the rail of the platform, not standing on the rail while working and not leaning over the rail ?

a) Yes

b) No

9 / 17

Category: WAH Checklist

9. Is the worker wearing a fall arrest harness which is in good condition ?

a) Yes

b) No

10 / 17

Category: WAH Checklist

10. Is the worker always hooked up to a horizontal life line of vertical rope grab ?

a) Yes

b) No

11 / 17

Category: WAH Checklist

11. Is the life line of sufficient thickness and strength ? (Support 2.3 metric tonnes ?)

a) Yes

b) No

12 / 17

Category: WAH Checklist

12. Is the life line securely attached to the structure ?

a) Yes

b) No

13 / 17

Category: WAH Checklist

13. Have temporary metal rail been installed around the circumstances or at the edge of permanent upper floor, elevated platform of landing and/ or roof to prevent falls ?

a) Yes

b) No

14 / 17

Category: WAH Checklist

14. Are person working near the opening in the railing at a landing using a fall arrest harness and retractable life line during loading / unloading activities ?

a) Yes

b) No

15 / 17

Category: WAH Checklist

15. Is a Safety net installed below the location where person are working at height ?

a) Yes

b) No

16 / 17

Category: WAH Checklist

16. Have all floor opening, cladding sheet and / or holes been securely covered ?

a) Yes

b) No

17 / 17

Category: WAH Checklist

17. Is the worker using a portable ladder to perform a simple job while a partner is holding the base ? Ladder must be in good condition and less than 9 meter long.

a) Yes

b) No

Your score is

0%

Restart Assessment

Must read all about “Work at Height”

Also asses your knowledge with Work at Height Quiz!

Must read Basic knowledge about “scaffolding “

Hazard identification and risk assessment (HIRA) is a proactive process of controlling a risk. No one wants any surprises in getting the job done. That’s why we identify the potential hazard of all our routine and non-routine work and assess the risk arising out of it and control it. Keep it structured by documenting it and use it as needed and review it from time to time.

HIRA is a systematic tool that helps in identifying the hazards of work and assessing or analysing the risks arising out of them and bringing them to an acceptable level of risk.

Objective of the HIRA Module

After the complete reading of this article, you will understand how to carry out your work safely by assessing the risks after identifying the hazards before conducting your routine or non-routine activities.

HIRA Reference Standards and Requirements

ISO 45001 (2018) – Clause 6.1.2: Hazard Identification and Assessment of Risks and Opportunities.

ISO 45001 (2018) – Clause 8.1.2: Eliminating Hazards and Reducing Risks

ISO 31000 (2018): Risk management – Guidelines

IS 15656 (2006):  Hazard Identification and Risk Analysis (HIRA)

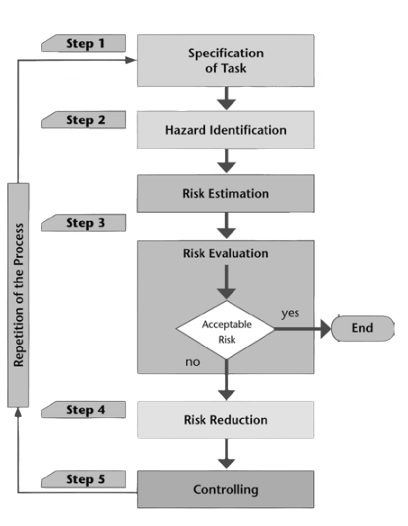

 HIRA Flow Chart

Basic steps of the HIRA

1. Team formation & Collection of information of Job
2. Hazards Identification
3. Identify the associated Risks with existing control measures.
4. Qualitative and quantitative analysis of the Risk.
5. Control of Risk up to acceptable Limit.
6. Documentation and review.

HIRA Team Formation & Task Identification

The HIRA team should be formed keeping in mind the difficulty of the job and task. The members of this team should be experienced and have complete knowledge about the work, and they should have knowledge about Hazard Identification and Risk Assessment process. It is also necessary to have the participation of supervisor and workers working in the team.

Identifying The Task

Task is a sequence of steps of activities with the help of which a job is completed. It is important to write the tasks in the order of sequential major events, but you will remember each step should tell what will done not how and start every step with action word (cut, weld, remove, handling etc.) and completing with naming word which action will done. (Cutting MS plate, Handling pipe etc.)

Hazard Identification

The main purpose of hazard recognition is to proactively identify a source of energy, situation or act that has the potential to harm us or our health while working in the workplace.

To find the hazard, one should mainly look in these five areas. it can be easily remembered by “MEEPS”

M – Material (Hazard presents in Physical condition)

E – Equipment (Hazard presents in Physical condition)

E- Environment (Hazard presents in Physical condition)

P- People (Behaviour’s category of Hazards)

S- Systems (Unsafe Act with behaviour’s Hazards)

Types of Hazards Energy and its source

Project Site Eighteen Top Hazards

1. Fire from inflammable materials
2. Unsafe scaffolds
3. Unsafe working platforms
4. Open Edges
5. Unsafe electrical connections and equipment
6. Unsafe excavations
7. Unsafe cantilever loading platforms
8. Struck by foreign body
9. Falling objects
10. Unstable/ unsafe structural members
11. Overloaded vehicle and forklifts
12. Unstable mobile crane
13. Unsafe lifting operations
14. Unsafe working at height
15. Unguarded machinery
16. Unsafe access
17. Hazards related to slips, trips, and falls
18. Unsafe storage and handling of gas cylinders

Risk Assessment

The main reason for risk assessment is to evaluate the hazard which either remains or is present in various activities while working in the organization, exposure to which has an adverse effect on our health.

The main purpose of risk assessment or analysis is that by qualitative and quantitative analysis of the risk arising from exposure to the present hazard, the hazard is removed or controlled by appropriate controls to bring the risk to an acceptable level.

Qualitative Analysis of Risk:

Risk level = LC, BC, IPC (Legal, Business, Interested party Concern) (Yes/No)

Quantitative Analysis of Risk:

Risk is measured by likelihood (Probably/Occurrence) and its impact (consequences/ Severity) with the existing adequacy/ failure of the controls.

Risk level/rating = Occurrence x Severity (By using risk matrix)

Risk Matrix Sample Chart

Risk Probability:

Also called occurrence or likelihood, the Y axis pertains the component of probability level are as follows:

1. Rare
2. Unlikely
3. Moderate
4. Likely
5. Almost certain

Risk Impact :

Also called severity or consequences, the X axis pertains the component of impact level are as follows:

1. Insignificant
2. Minor
3. Significant
4. Major
5. Severe

Calculating The Risk by Sample Risk Matrix (5×5) :

Finally risk ratings are coming from risk matrix as follows –

1. Very Low – Acceptable Risk
2. Low- Acceptable Risk
3. Medium – Un Acceptable Risk
4. High – Un Acceptable Risk
5. Very High – Un Acceptable Risk
6. Extreme – Un Acceptable Risk

Now we are going to control the unacceptable risk up to accepting level by the hierarchy of risk control.

(Criteria of Qualitative and quantitative risk accepting and nonaccepting risk rating must define in the process of HIRA by the management)

HIRA Risk Controls and its effectiveness

Risk Control element effectiveness

1. Elimination & Substitution: By remove/ replace the hazard – Effectiveness 100%
2. Engineering control: Create boundary between human and hazard – Effectiveness 40 -99 %
3. Administrative control: By using and implementation of Law, policy, regulation, process, SOP/SMP/OCP/WI/Checklist etc. – Effectiveness 20-40%
4. Personal protective equipment: By providing PPEs to protect – Effectiveness 1-20%

Finally, you will always ensure all risk should be control at acceptable level with existing control measures before starting of the related job or activities.

HIRA Review

Hazard identification and Risk assessment shall be reviewed at least once in a year to keep this information up to date. Whereas it is necessary to review the HIRA after making any changes in Activity, Hazard, Risk and Control. It is necessary to assess the risk when some changes take place.

1. During changes from normal operation.
2. New or modified process/ installation.
3. Changes in raw materials, chemicals etc.
4. During expansion, contraction, restructuring.
5. New or modified legislation etc.
6. Incident investigation findings on gaps in HIRA.
7. Incident trend records / Audit findings etc.
8. New information/inputs from interested parties.

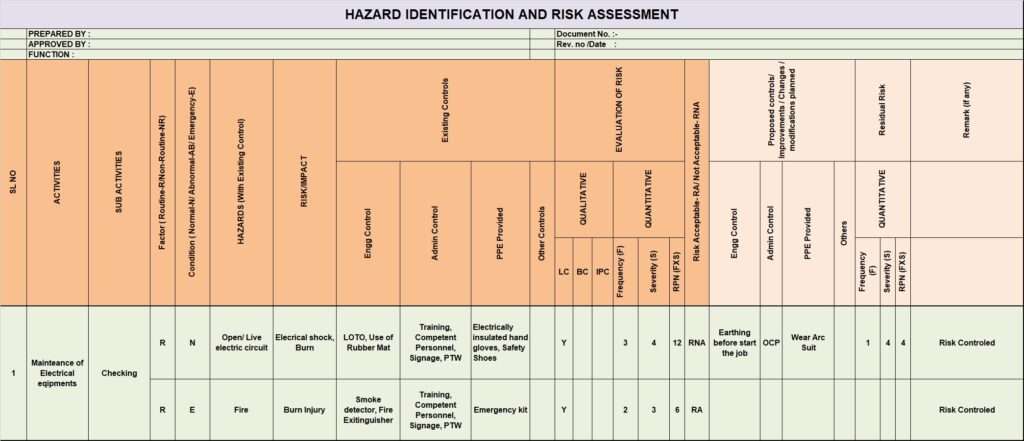

Download Standard HIRA sample with Format
